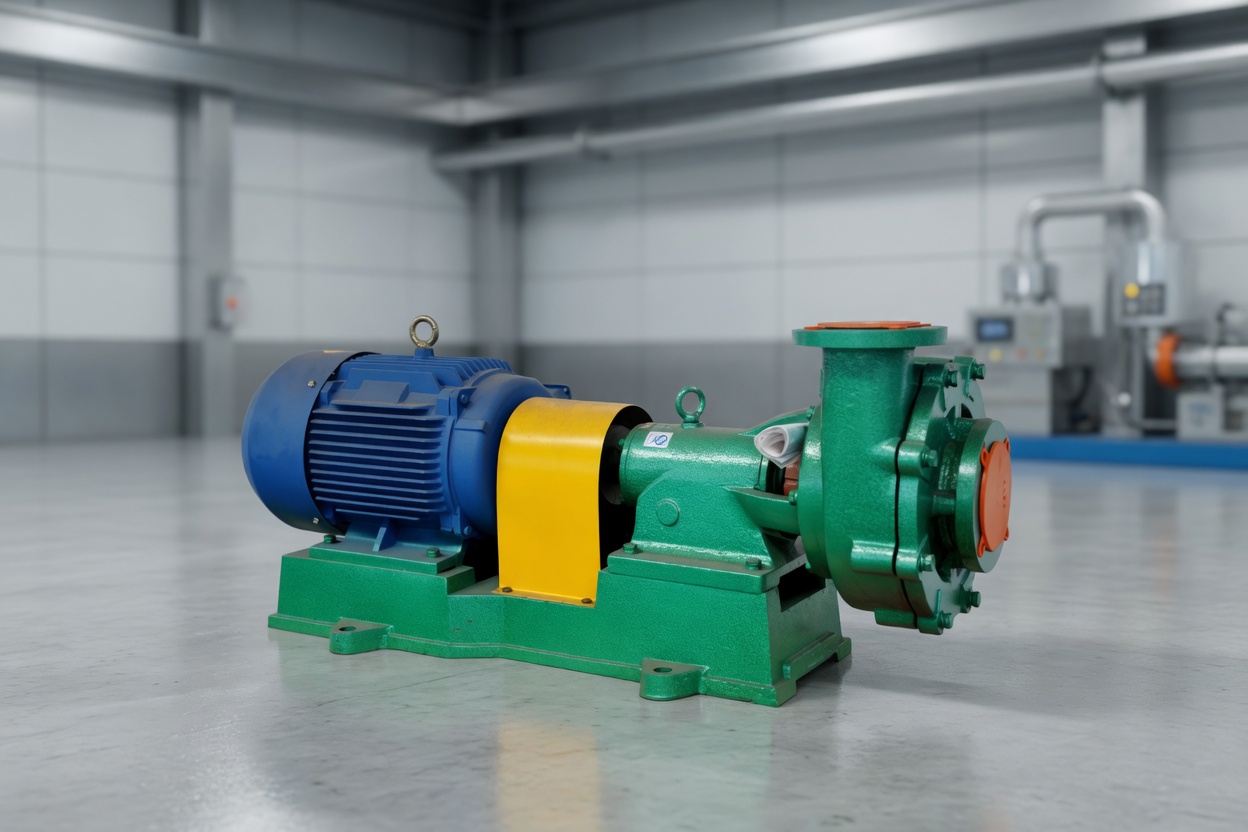

UHB-ZK Series Mortar Pump
The UHB-ZK series mortar pump is a suspended single-stage, single-suction centrifugal pump. Its flow-passing components are made of steel-lined ultra-high molecular weight polyethylene (UHMWPE), offering strong corrosion resistance, excellent wear resistance, and resistance to environmental stress cracking. The metal base structure further improves the pump’s pressure-bearing capacity.
| Flow Rate | 3~70 m³/h |
|---|---|
| Head | 18~50 m |
| NPSH (Net Positive Suction Head) | 2.5~5 m |
| Motor Power | 2.2~22 kW |
| Temperature Range | -20℃~80 ℃ |
- Multi-functional: One pump can adapt to a variety of working conditions. It can transport both acidic and alkaline clear liquids or slurries, various corrosive mineral slurries in the smelting industry, dilute acids in the sulfuric acid industry, and various wastewater in the environmental protection industry, etc.
- Multiple Sealing Options: The series adopts various sealing methods: K-type dynamic seal, single mechanical seal, cartridge mechanical seal, and double mechanical seal, which can be selected according to specific working conditions.
Application Range: Acids, Alkalis, Salts
- Oils
- Food And Beverages
- Alcoholic Beverages
- Organic Solvents
Especially suitable for transporting strongly corrosive liquids containing fine particles.
