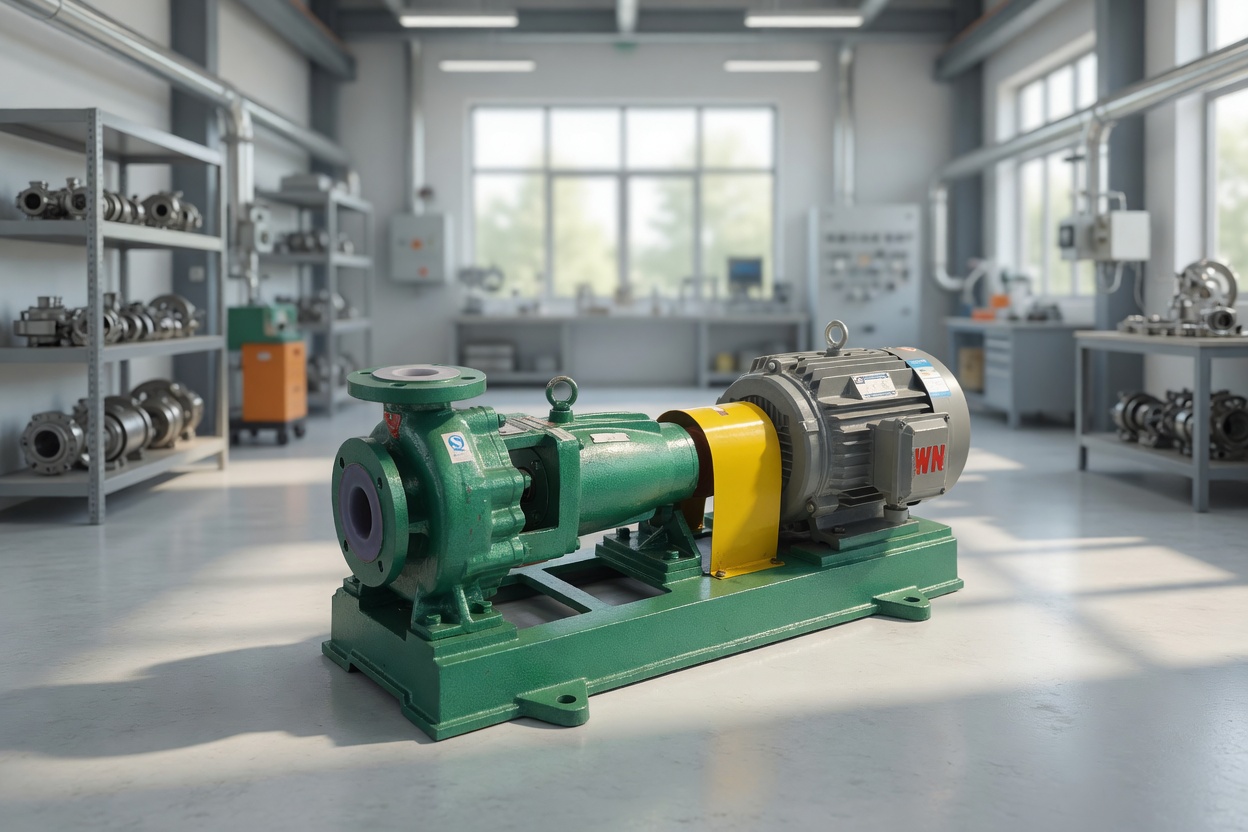

IHF Series Acid and Alkali Resistant Centrifugal Pump - Image 1
Click to enlarge

IHF Series Acid and Alkali Resistant Centrifugal Pump

The IHF centrifugal pump is designed and manufactured in accordance with international standards and relevant national standards. Its performance, rated performance points, and dimensions are equivalent to the international standard ISO 2858.

Flow Rate2~60 m³/h
Head4~20 m
NPSH (Net Positive Suction Head)3.2~5 m (
Motor Power1.5~7.5 kW
Temperature Range-20~150 ℃
Category:
  • Pump Body and Cover: Both adopt metal (HT200) base lined with fluoroplastic. The impeller uses a metal insert (WCB) wrapped with fluoroplastic alloy and pressed into shape. Advantages: Wide corrosion resistance range, high strength, and durability.
  • Sealing Options: The series offers two sealing methods: single mechanical seal and double mechanical seal, which can be selected according to specific working conditions.

  • Application Range:

    • Acid Pickling And Painting Process In Automobile Manufacturing
    • Electrolyte Transportation In Non-ferrous Metal Smelting
    • Chlorine Water, Wastewater Treatment And Acid Addition In Ion Membrane Caustic Soda Projects
