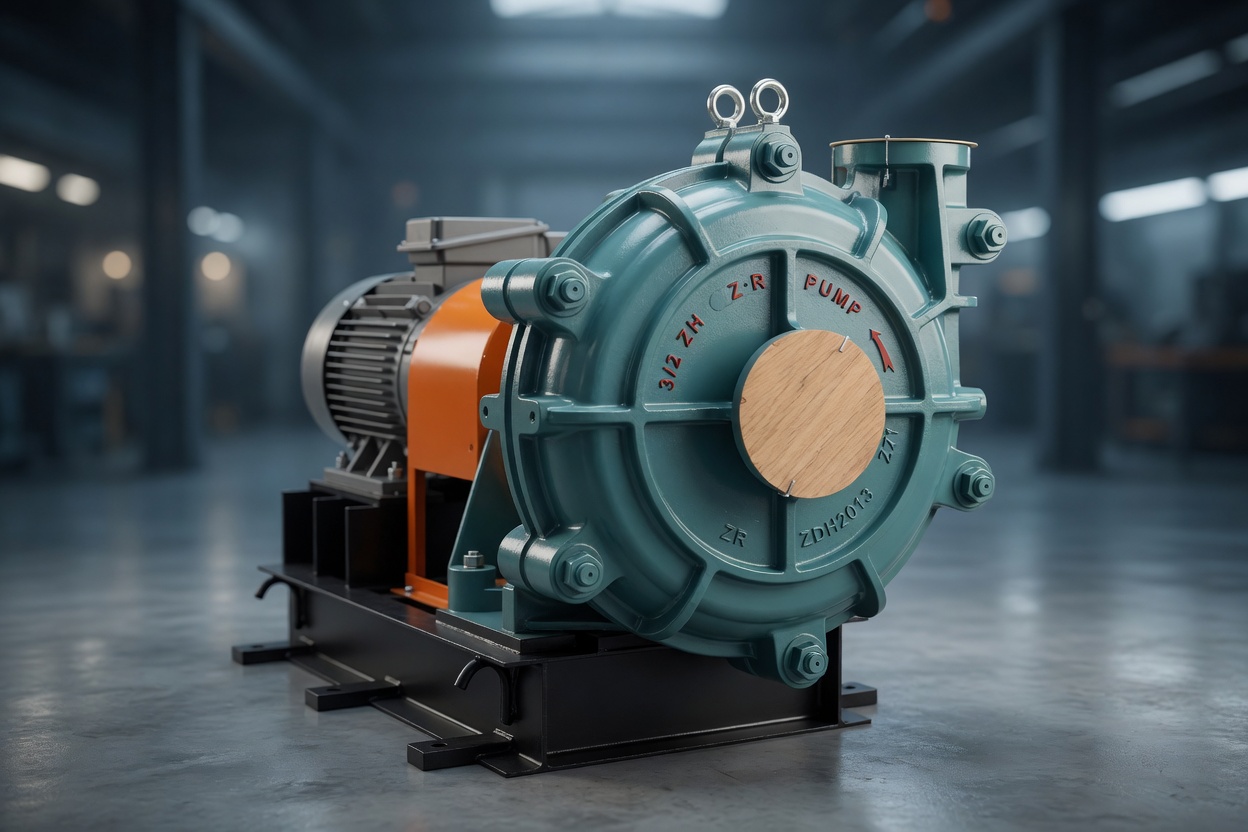

ZH Series Horizontal Slurry Pump
The ZH pump is a single-stage single-suction cantilever double-casing horizontal centrifugal slurry pump. It is specially designed for transporting highly abrasive slurries in industries such as mining, metallurgy, power, chemical, papermaking, and building materials. This series is particularly suitable for small flow rate, high concentration, and high head conditions that cannot be handled by single-stage pumps.
| Flow Rate | ~1152 m³/h |
|---|---|
| Head | ~98 m |
| Speed | 1400~2200 r/min |
| Efficiency | 20%~65% |
| Motor Power | 30~1200 kW |
| NPSH (Net Positive Suction Head) | 2~5.5 m |
- Large Diameter Short Overhang: Ensures shaft rigidity, suitable for high-power working conditions.
- Impeller Design: Auxiliary vanes on the front and rear covers of the impeller can reduce seal pressure and minimize recirculation to the greatest extent.
- Pump Casing: Made of ductile iron with reinforcing ribs to help the casing withstand high pressure.
- Wear-Resistant Flow Parts: Made of high-chromium alloy or rubber with excellent wear resistance, corrosion resistance, and impact resistance, greatly improving the pump’s service life.
-
Application Range:
- Suitable for highly abrasive slurries with density of 40~80%.
- Suitable for low-abrasive slurries with density of 40~100%.
- Suitable for lower-abrasive slurries with density of 40~120%
