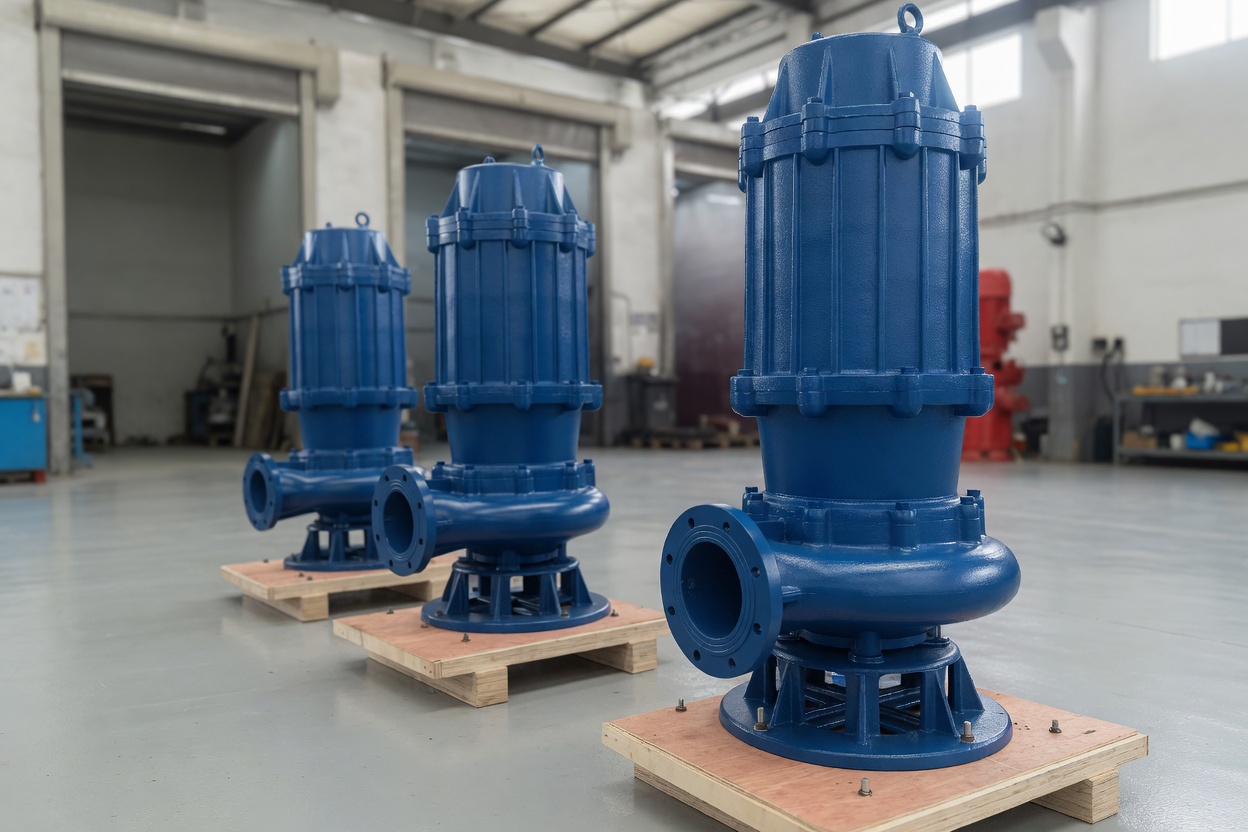

QW Type Non-Clogging Submersible Sewage Pump
The QW non-clogging submersible sewage pump was developed by introducing advanced technology from the German ABS pump company and has been successfully improved multiple times. All performance indicators of this product meet the standards of similar imported products. It features high efficiency, energy saving, and a unique structure. Since its launch, it has been well received by users for its unique design and reliable quality, and has been selected by many units as a replacement for imported pumps.
| Caliber | 25~150 mm |
|---|---|
| Flow Rate | 8~180 m³/h |
| Head | 7-60 m ( |
| Speed | 1450/2900 r/min |
| Motor Power | 1.1~18.5 kW |
- Large Flow Channel Anti-Clogging Hydraulic Design: Significantly improves the ability to pass solids, effectively handling fibrous materials up to 5 times the pump caliber and solid particles up to about 50% of the pump caliber.
- Reasonable Design and High Efficiency: Matched with a well-designed motor, resulting in high efficiency and significant energy savings. The mechanical seal uses double tandem sealing with hard wear-resistant tungsten carbide, offering durability and wear resistance, allowing safe continuous operation for more than 8000 hours.
- Compact Structure and Easy Operation: Small size, easy to move and install. It can be equipped with an automatic liquid level control cabinet according to user needs, automatically starting and stopping the pump based on liquid level changes without requiring dedicated personnel.
- Vertical Structure: The pump body is submerged in the liquid during operation, making it easy to start with no exhaust or priming issues. It also features leak-free operation, with a submersion depth of 0.5~7 meters.
