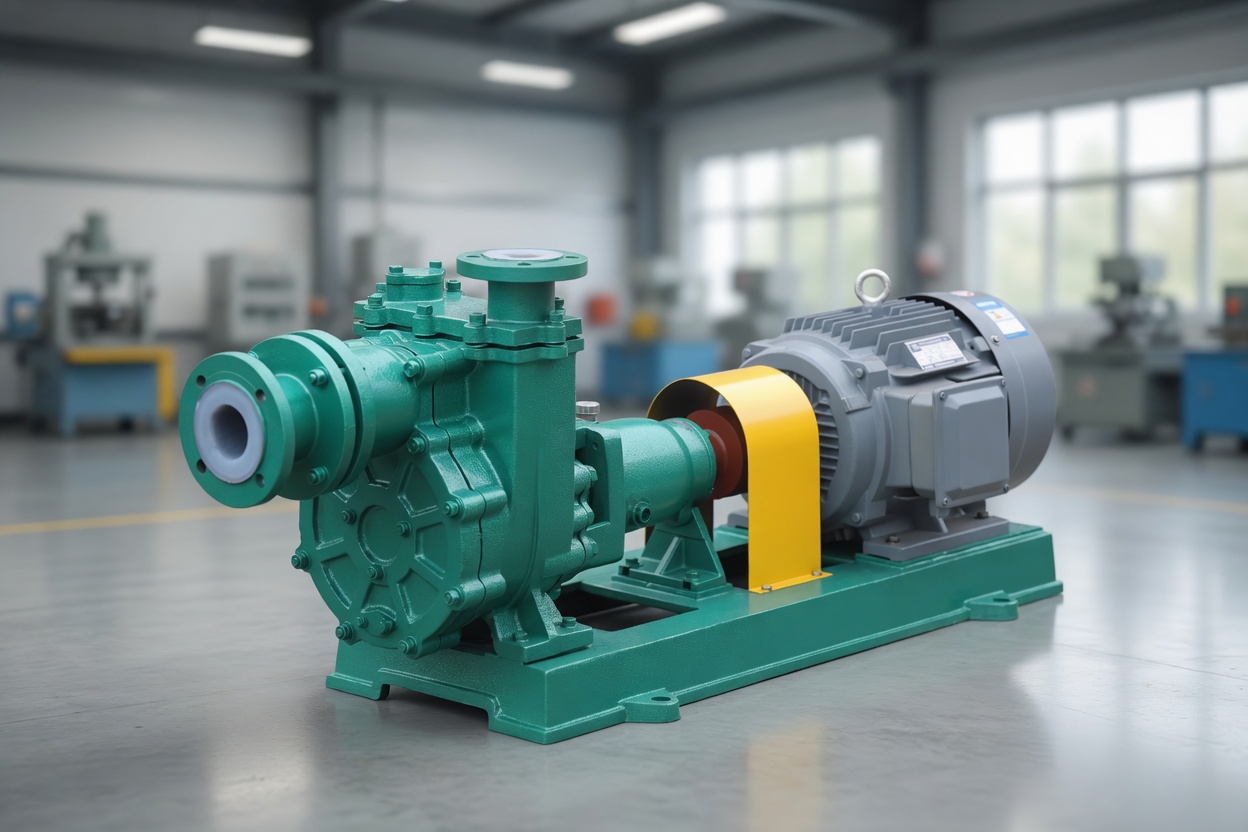

FZB Series Fluoroplastic Alloy Self-Priming Centrifugal Pump
The FZB series fluoroplastic alloy self-priming centrifugal pump is based on the IHF centrifugal pump structure, equipped with a double-volute self-priming pump body to achieve self-priming function. The overall structure is simple and highly versatile.
| Flow Rate | 1.5~110 m³/h |
|---|---|
| Head | 15~40 m |
| NPSH (Net Positive Suction Head) | 3 m |
| Self-Priming Height | 1~3 m |
| Self-Priming Time | 150~200 s |
| Motor Power | 2.2~30 kW |
| Temperature Range | -20℃~80 ℃ |
- Corrosion and Pressure Resistance: All flow-passing components are made of fluoroplastic and fluoroplastic alloy, offering excellent corrosion resistance. The pump base is made of metal material, providing strong pressure resistance.
- Easy Operation: Specially designed for low liquid level conditions. The pump is installed above the tank, making installation, operation, inspection, and maintenance very convenient. The self-priming height can be adjusted between 1 to 3 meters according to the medium density.
Application Range:
- Chemical Industry
- Pesticide Industry
- Acid And Alkali Production
- Papermaking Industry
- Acid Pickling Process
- Electronics Industry
